The engine control circuit of Buick-Century 3.3L(4)

Published:2011/5/17 20:19:00 Author:Borg | Keyword: engine control circuit, Buick-Century | From:SeekIC

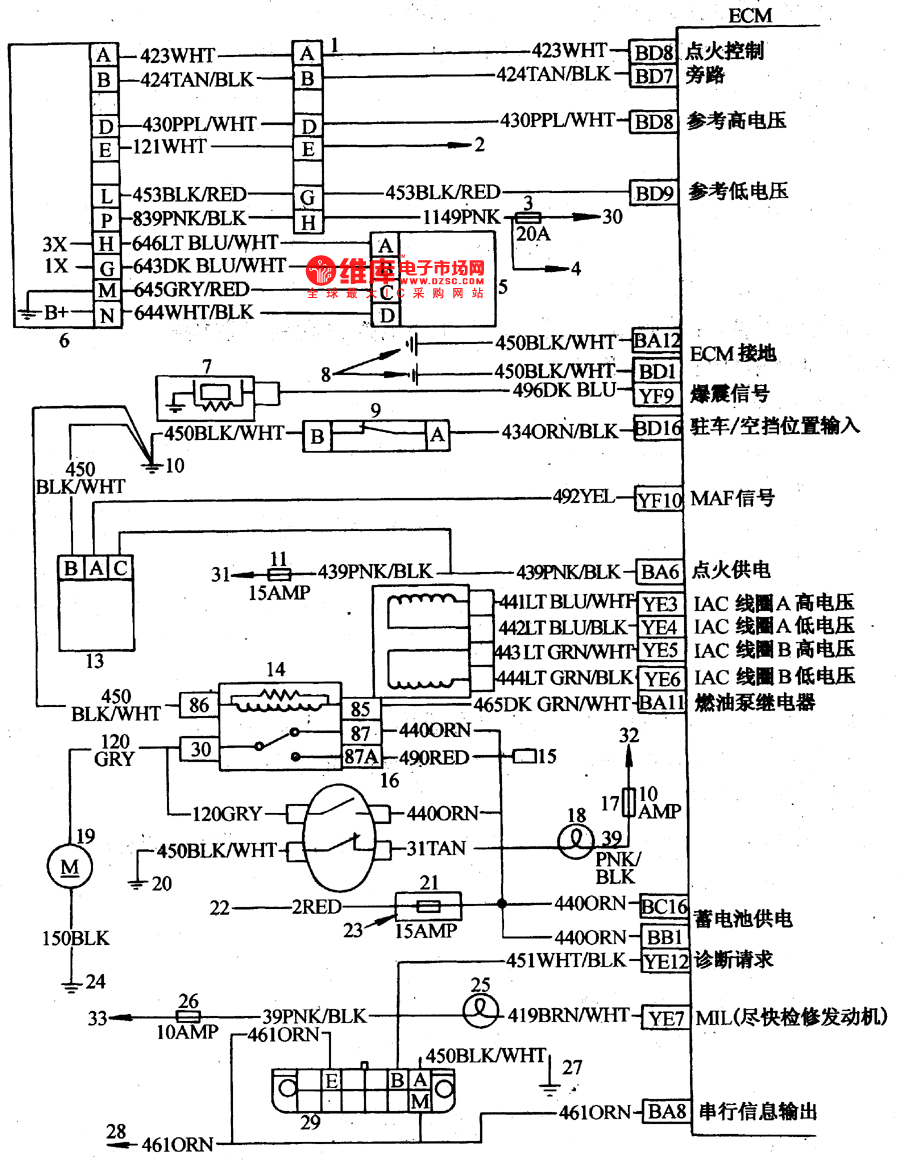

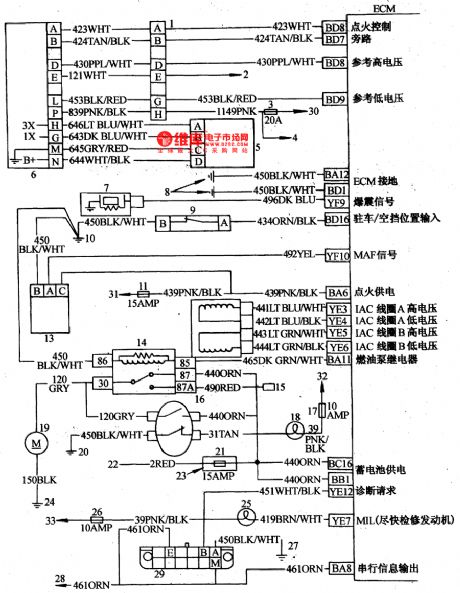

The engine control circuit of Buick-Century 3.3L1-igniting switch wire 8-lead pin connector; 2-tachometer on the instrument(if there is); 3-oil injector coil fuse; 4-oil injector; 5-crank position sensor; 6-igniting control module; 7-explosive sensor; 8,10,20,7-transmission ground connection; 9-p/n switch; 11-ECM fuse; 12-idling speed control motor; 13-air flow meter; 14-fuel pump relay; 15-oil pump test connector; 16-engine oil pressure switch.
