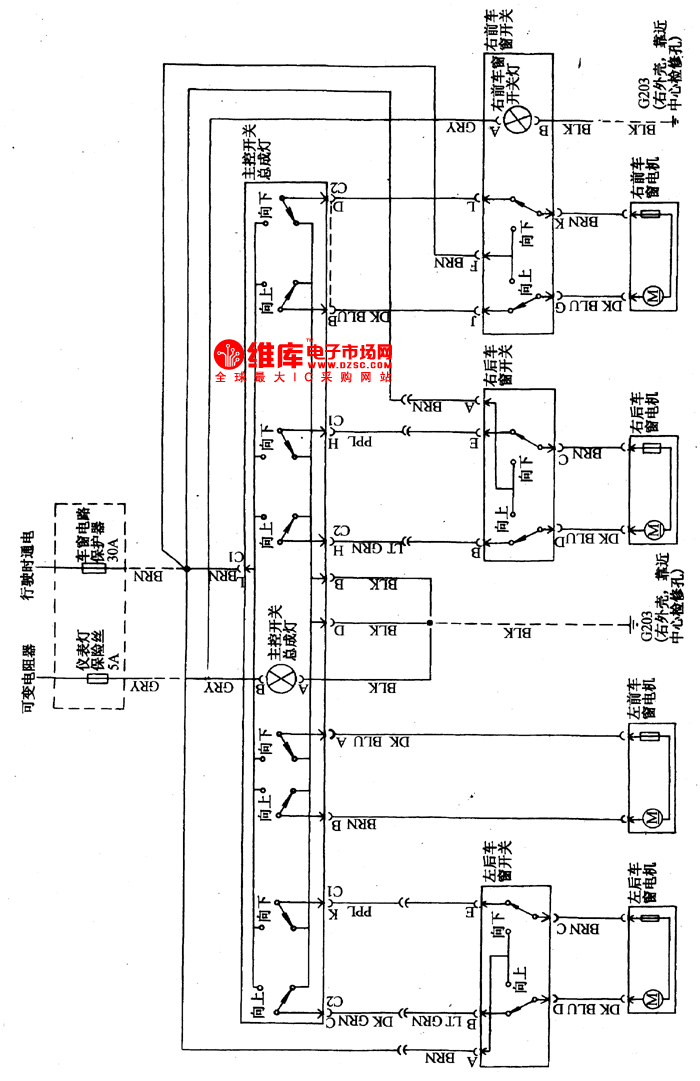

The electric window circuit of Buick-Century

Published:2011/5/17 21:27:00 Author:Borg | Keyword: electric window, Buick-Century | From:SeekIC

This circuit is the same with common cars, which has a general switch controlled by the driver, and there are separated switches controlled by passengers, when press head up , the glass will raise up, and vice versa. The elevation motor is a permanent micro D.C motor.
