The driver with many LEDs

Published:2011/11/30 1:03:00 Author:Ecco | Keyword: driver , many LEDs | From:SeekIC

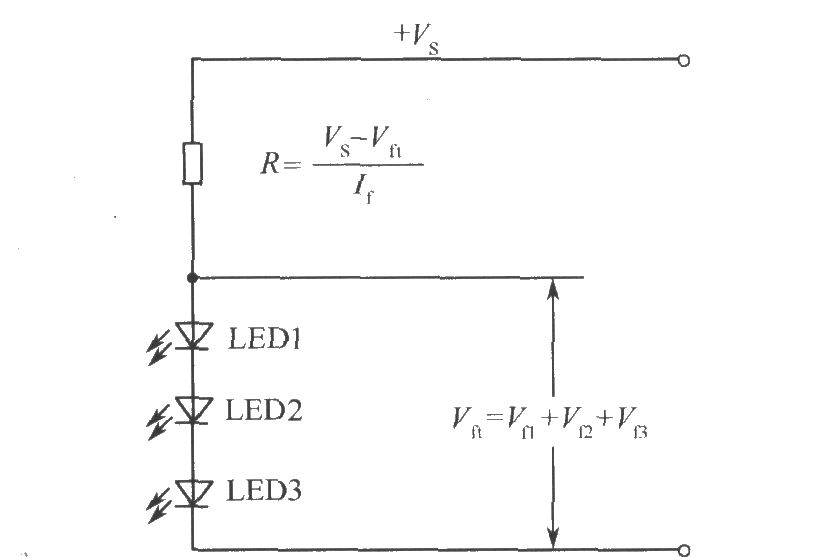

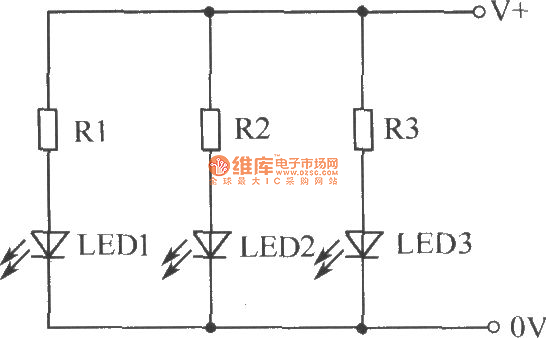

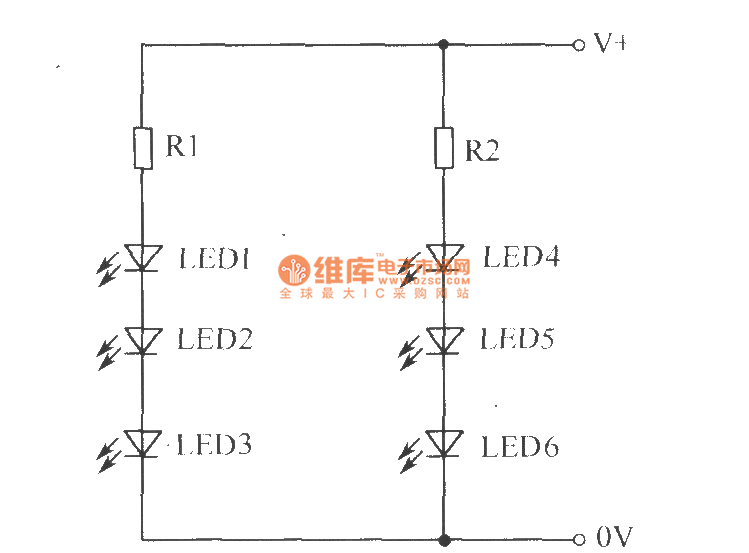

The LEDs connected in series isonly driven bya current limitedresistor: The circuit can drive the LEDs in any quantity: The LEDs connected in parallel can drive many LEDs:
