The connection method of AD7520 basic circuit

Published:2013/1/23 2:33:00 Author:Ecco | Keyword: connection method , basic circuit | From:SeekIC

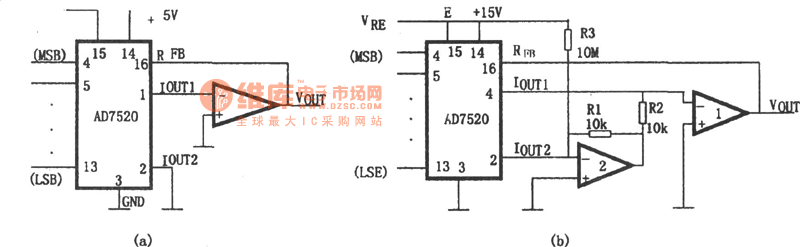

The AD7520 is an inexpensive, medium - resolution D / A converter chip, and it is composed of CMOS current switch and T resistor network, it has a simple structure, flexible configuration and good versatility. The connection method of the AD7520 basic circuit is shown as figure, wherein the figure (a) is a unipolar output basic conversion circuit; Figure (b) is the basic conversion circuit of the bipolar output.
