The configuration and pin circuit diagram of LM378

Published:2011/3/30 21:59:00 Author:Ecco | Keyword: configuration circuit, pin circuit | From:SeekIC

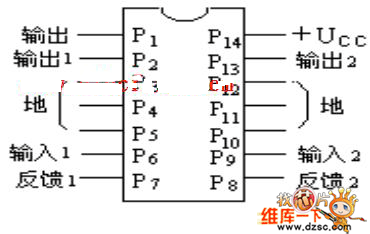

The configuration and pin circuit diagram of LM378 is as 7.46 shown. The main characteriatics: the supply is 10~35V, the output power is 4w, the input resistanceis 3kΩ, the gaining of voltage is 34dB, the bandwidth is 50KHz.
