The biphasic pulse generator circuit composed of CD4013

Published:2011/8/4 8:20:00 Author:nelly | Keyword: biphasic pulse, generator | From:SeekIC

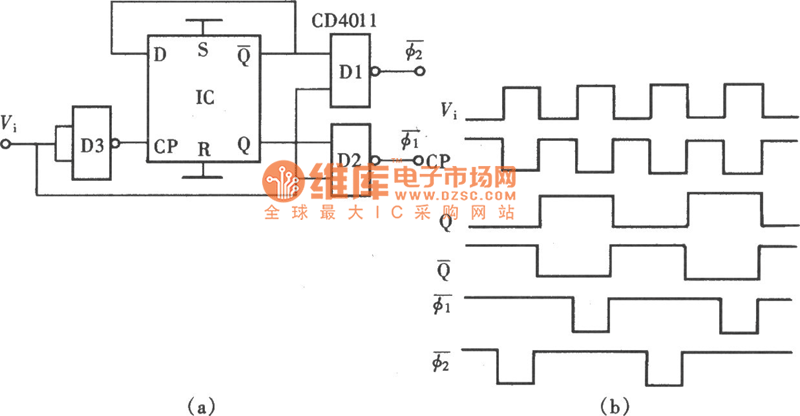

Inthedesignofthedigitalcircuit,wemayneedapairofbiphasicpulsegenerators.ThebiphasicpulsegeneratorcomposedofCD4013isasshown.(a)isschematic,and(b)isthewaveform.
