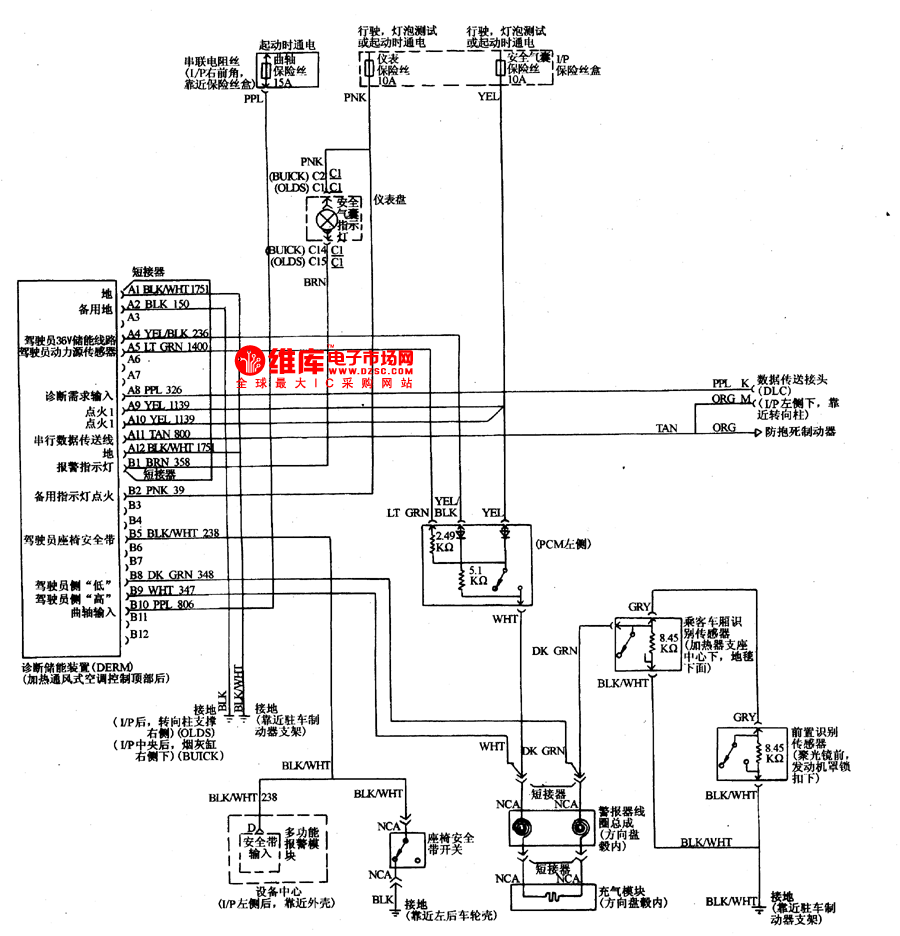

The air-bag and seatbelt control circuit of Buick-Century

Published:2011/5/18 2:31:00 Author:Borg | Keyword: air-bag, seatbelt, control circuit, Buick-Century | From:SeekIC

The air-bag is a kind of negative protection equipment, when the car is crashing with others in the running way, the sensor receives an impact signal, as long as it reaches a supposed degree, the sensor will generate a signal and send it to the controller, then the electric controller will compare it with the saved data. If it reaches the condition of opening the air-bag, the drive circuit will send a starting signal to the air generator of the air-bag module, and the generator will explode the gas-forming admixture and swell the air-bag.
