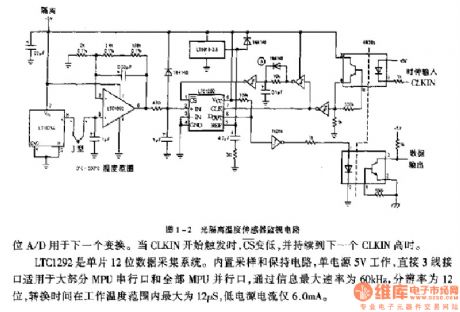

The acquisition circuit of light isolation data

Published:2011/4/19 1:18:00 Author:Ecco | Keyword: acquisition circuit , light isolation, data | From:SeekIC

LTC1292 is a monolithic 12-bit data acquisition system. Built-in sample and hold circuit work under 5V single supply. Connecting to wire 3 directly, it is suitable for most serial and parallel interface port of MPU. The maximum rate of passing information is 60kHz, the resolution is 12-bit, the maximum conversion time in the operating temperature range is 12μs, the low current is only 6.0mA.
