The Output Circuit-32V Linear Regulating Circuit

Published:2011/7/17 10:16:00 Author:Michel | Keyword: Linear Regulating Circuit | From:SeekIC

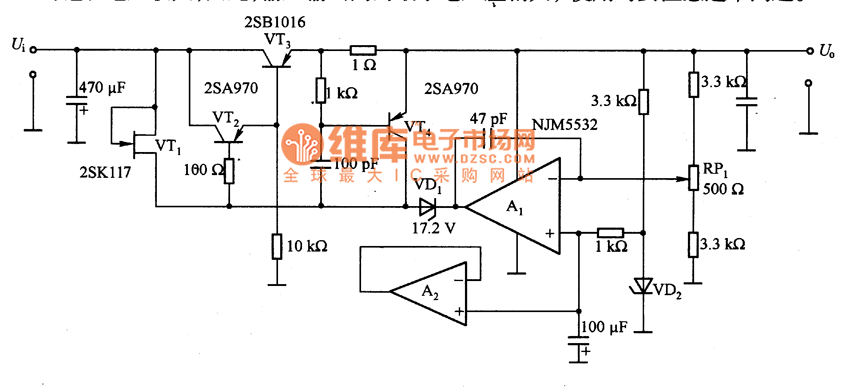

The picture is output circuit-32V linear regulating circuit.And its output current is 500mA.In the circuit,RP1 is used to adjust the output voltage.VT1 can choose 2SK30A field effiency tube and here 2SK117 is used.2SK117 saturated voltage is large thus the minimum current difference between the output and input is a little large and this problem should be noticed when we use it.
