The ABS circuit of Buick-Century

Published:2011/5/18 2:48:00 Author:Borg | Keyword: ABS, Buick-Century | From:SeekIC

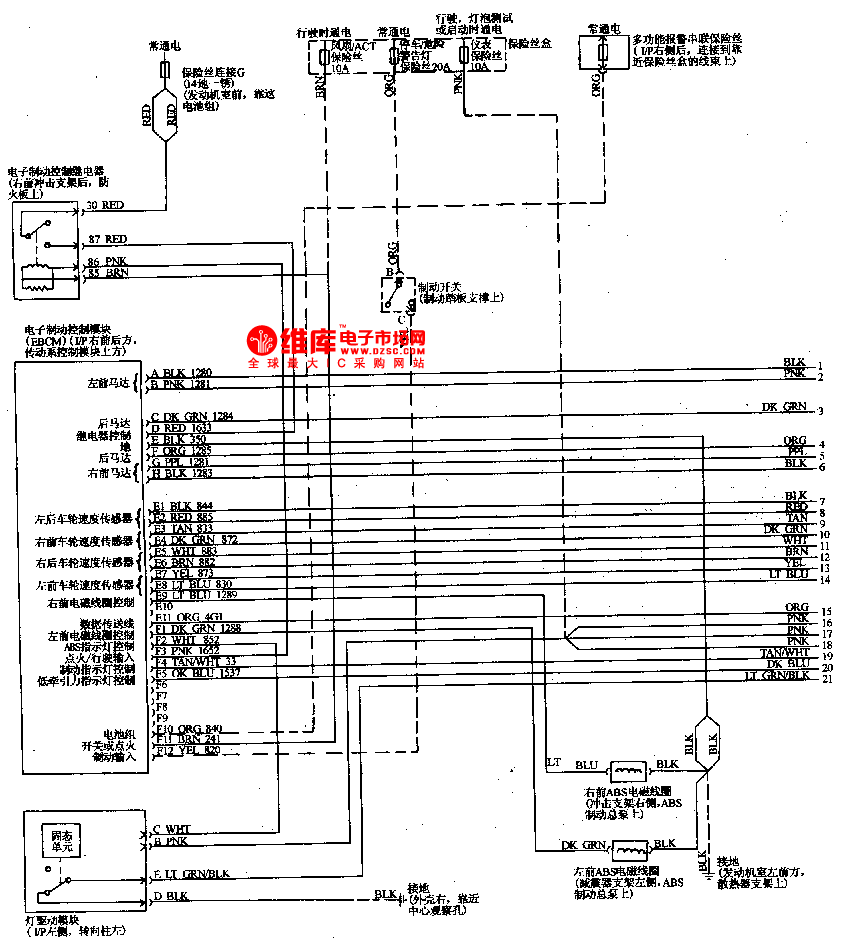

The ABS is used to control the range of slip rate between wheels and the ground when braking the car, which can prevent the wheel locking and slipping, so that the steering control and side-slipping can be avoided. When the sensor delivers the differentia between wheels and the car indicating the wheel is locked, the ABS computer will give order to activate the magnetic valve to reduce the pressure of the brake cylinder. The circuit is shown in Figure 1 and Figure 2. Figure 1. The ABS system of Buick-Century
