Temperature-controlled Fan 1

Published:2013/7/28 20:05:00 Author:muriel | Keyword: Temperature-controlled Fan | From:SeekIC

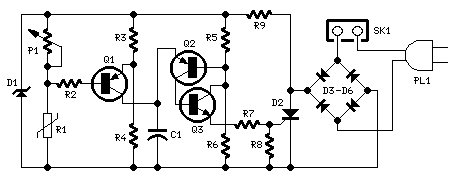

Parts:P1 22K Linear Potentiometer (See Notes)R1 15K @ 20°C n.t.c. Thermistor (See Notes)R2 100K 1/4W ResistorR3,R6 10K 1/4W ResistorsR4,R5 22K 1/4W ResistorsR7 100R 1/4W ResistorR8 470R 1/4W ResistorR9 33K 4W ResistorC1 10nF 63V Polyester CapacitorD1 BZX79C18 18V 500mW Zener DiodeD2 TIC106D 400V 5A SCRD3-D6 1N4007 1000V 1A DiodesQ1,Q2 BC327 45V 800mA PNP TransistorsQ2 BC337 45V 800mA NPN TransistorSK1 Female Mains socketPL1 Male Mains plug & cable Device purpose:This circuit adopt a rather old design technique as its purpose is to vary the speed of a fan related to temperature with a minimum parts counting and avoiding the use of special-purpose ICs, often difficult to obtain. Circuit operation:R3-R4 and P1-R1 are wired as a Wheatstone bridge in which R3-R4 generates a fixed two-thirds-supply reference voltage, P1-R1 generates a temperature-sensitive variable voltage, and Q1 is used as a bridge balance detector.P1 is adjusted so that the reference and variable voltages are equal at a temperature just below the required trigger value, and under this condition Q1 Base and Emitter are at equal voltages and Q1 is cut off. When the R1 temperature goes above this balance value the P1-R1 voltage falls below the reference value, so Q1 becomes forward biased, pulse-charging C1.This occurs because the whole circuit is supplied by a 100Hz half-wave voltage obtained from mains supply by means of D3-D6 diode bridge without a smoothing capacitor and fixed to 18V by R9 and Zener diode D1. Therefore the 18V supply of the circuit is not true DC but has a rather trapezoidal shape. C1 provides a variable phase-delay pulse-train related to temperature and synchronous with the mains supply zero voltage point of each half cycle, thus producing minimal switching RFI from the SCR. Q2 and Q3 form a trigger device, generating a short pulse suitable to drive the SCR. Notes:The circuit is designed for 230Vac operation. If your ac mains is rated at about 115V, you can change R9 value to 15K 2W. No other changes are required.Circuit operation can be reversed, i.e. the fan increases its speed as temperature decreases, by simply transposing R1 and P1 positions. This mode of operation is useful in controlling a hot air flux, e.g. using heaters.Thermistor value is not critical: I tried also 10K and 22K with good results.In this circuit, if R1 and Q1 are not mounted in the same environment, the precise trigger points are subject to slight variation with changes in Q1 temperature, due to the temperature dependence of its Base-Emitter junction characteristics. This circuit is thus not suitable for use in precision applications, unless Q1 and R1 operate at equal temperatures.he temperature / speed-increase ratio can be varied changing C1 value. The lower the C1 value the steeper the temperature / speed-increase ratio curve and vice-versa.
