Telephone signals sending circuit diagram

Published:2011/4/29 4:45:00 Author:Rebekka | Keyword: Telephone signals sending | From:SeekIC

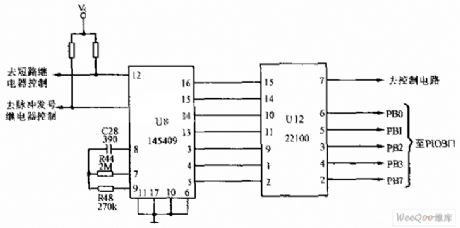

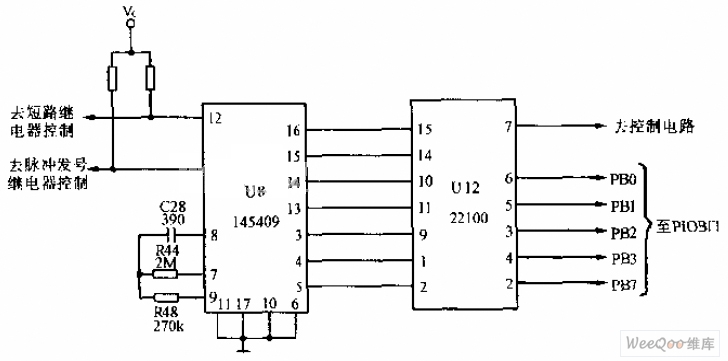

Telephone signals sending circuit is shown as below. U8 is signals sending integrated circuit. The model is 145409. U12 (22100) is a 4X4 cross-matrix circuit (CD22100 is also known as four-way switch). The control circuit is used as U8.
