TWO_TRANSISTOR_CASCODE_MULTIVIBRATOR

Published:2009/7/16 3:51:00 Author:Jessie | From:SeekIC

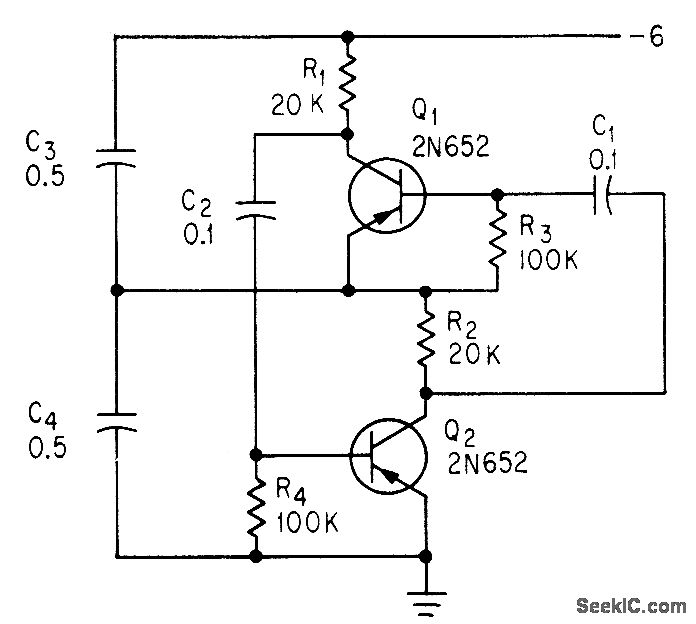

Two capacitors in voltage-divider storage circuit control transistors to give choice of rectangular or sawtooth waveforms at output of Q1, depending on time constants C1-R3 and C2-R4.-C. Sing, Advantages of Free-Running Cascode Multivibrators, Electronics, 37:5, p 28-29.
