TWO_TERMINAL_PIEZO_DEVICE_DRIVER

Published:2009/7/13 0:09:00 Author:May | From:SeekIC

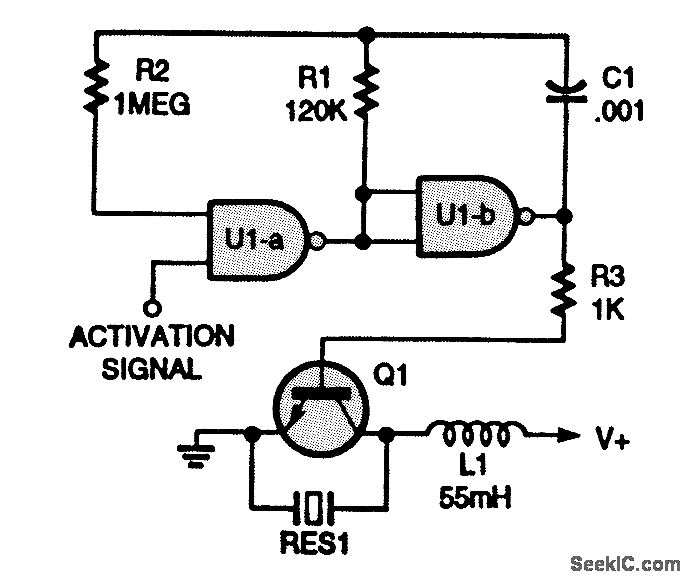

Two-terminal devices can be driven by two NAND gates. A booster coil is used to compensate for the sound-pressureattenuation caused by the case.
