TWO_STATE_SIREN

Published:2009/7/10 1:56:00 Author:May | From:SeekIC

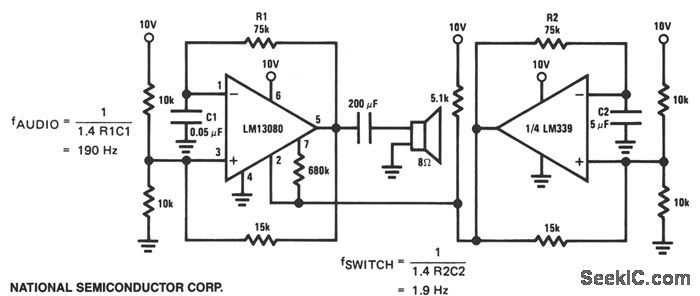

This is a two-state or on/off-type siren where the LM13080 oscillates at an audio frequency and drives an 8-0 speaker. The LM339 acts as a switch which controls the audio burst rate.
