TWO_QUADRANT_SQUARING

Published:2009/7/14 3:49:00 Author:May | From:SeekIC

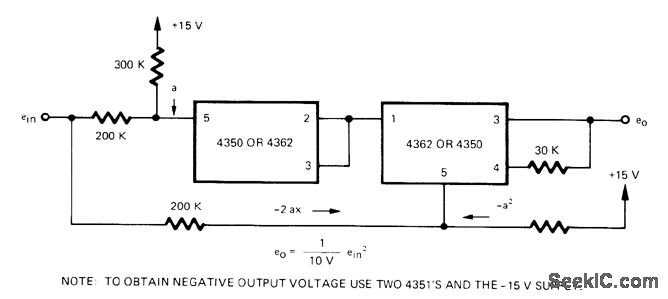

Teledyne Philbrick log modules are used in simple two-quadrant squarer in which input is offset becausemodules accept only one polarity Circuit shown provides positive output voltage．－''Aρplications for Models 4350/4351 ＆ 4362/4363 Logarithmic Amplifiers,″ Teledyne Phillbrick,Dedham,MA ,974, AN-14.
