TWO_INDEPENDENT_DELAYS

Published:2009/7/13 2:26:00 Author:May | From:SeekIC

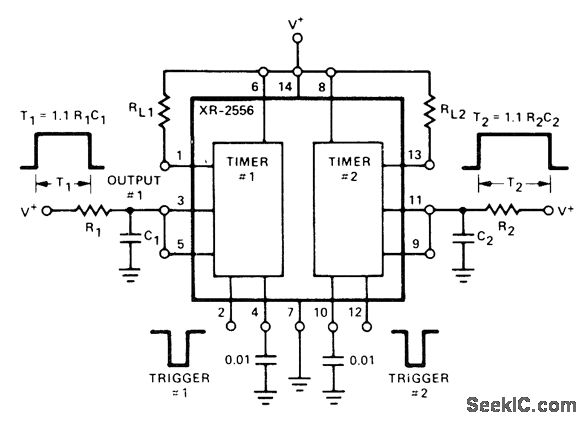

Each timer section of Exar XR-2556 dual timer operates independently in mono MVBR mode to provide delays shown above output waveforms Supply voltage range is 4.5 to 16 v.-Timer DataBook, Exar Integrated Systems, Sunnyvale,CA,1978,p23-30.
