TWH8778 power driver switch integrated circuit diagram

Published:2011/8/2 1:20:00 Author:Ecco | Keyword: power , driver , switch , integrated circuit | From:SeekIC

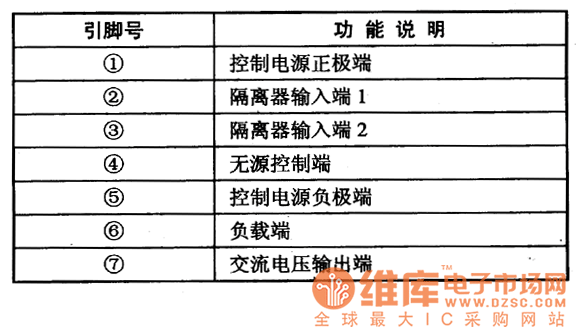

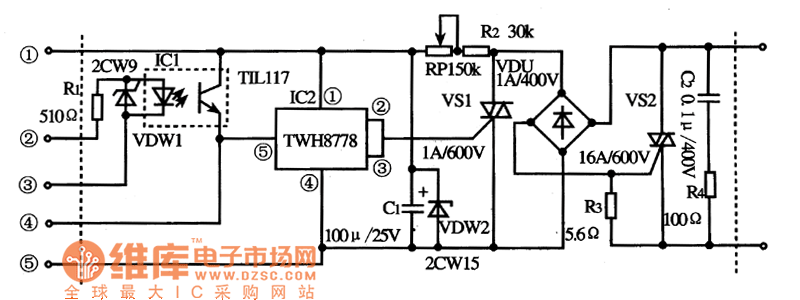

TWH8778 is a power driver switch IC, which is a common component used in many areas of the trigger-driven switch. 1. Features of functionsTWH8778 IC is made by FET and bipolar transistors using hybrid technology, it has the features of low static power consumption and high gain characteristics. The internal circuitincludes short circuit, overvoltage, overheating and other protection circuits, it also can work under poor environment and load conditions, it is small and easy to install. 2. Pin function TWH8778 IC uses single pin package, the pin functions are listed in Table. TWH8778 IC pin function 3. The typical application circuit The factory automatical control switch typical application circuit composed of TWH8778 integrated circuit is shown as the chart. The typical application circuit of TWH8778 integrated circuit
