TV small-signal processing monolithic integrated circuit diagram

Published:2012/8/16 21:41:00 Author:Ecco | Keyword: TV , small-signal processing, monolithic, integrated circuit | From:SeekIC

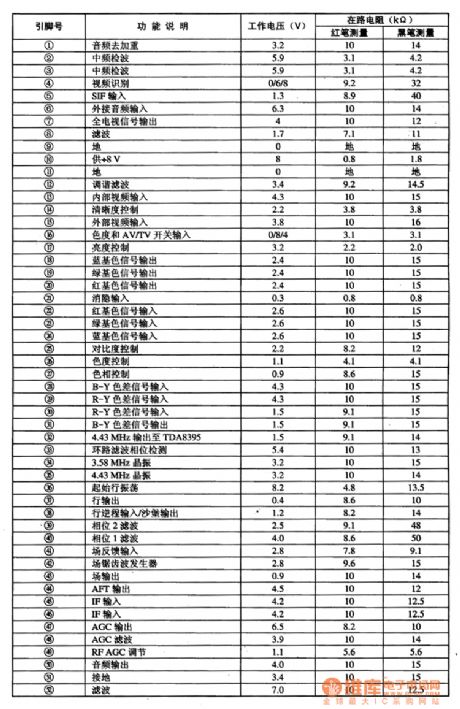

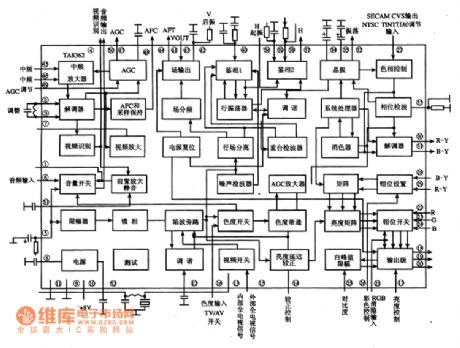

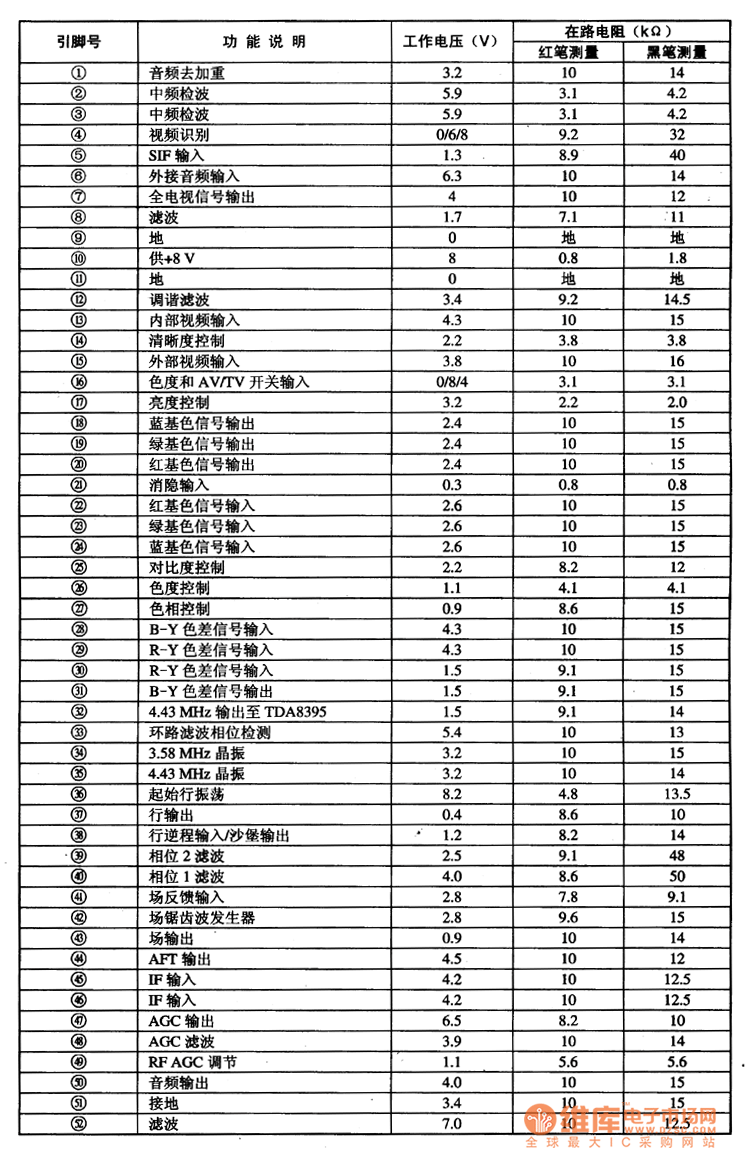

DA8362 is the TV small-signal processing monolithic integrated circuit produced by Philips, which are widely used in a variety of import- brand and domestic large-screen color TVs.(1) Features and functionsTDA8362 IC includes image and audio signal processing circuit, line and field scanning signal processing circuit, chrominance and luminance signal processing circui, character display signal processing circuit, external video or luminance (Y) signal input circuit, sync separator and some other circuits with auxiliary functions. Its internal block diagram is shown in Figure 1.(2) pin functions and dataThe TDA8362 IC uses 52-pin dual in-line package, and pin functions and data are listed in Table 1.
