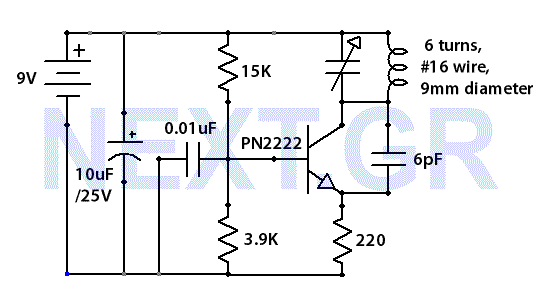

TV and FM jammer schematic

Published:2012/9/13 20:45:00 Author:Ecco | Keyword: TV, FM jammer | From:SeekIC

The Jammer is a very small circuit and can fit inside a small plastic box with 9V battery inside. It can be very illegal if you attach an external antenna so don't. adjust frequency by turning trimmer. Source: NEXT.GR
