Published:2009/7/15 3:06:00 Author:Jessie | From:SeekIC

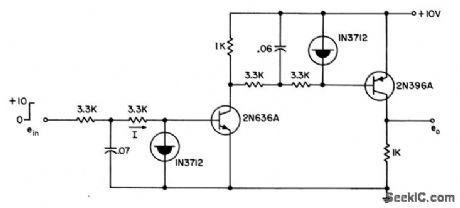

Uses two cascaded complementary stages in which tunnel diodes are used with transistors. Takes +10V input pulse.- Transistor Manual, Seventh Edition, General Electric Co. 1964, p 369.
