TUNNEL_DIODE_PULSE_GENERATOR

Published:2009/7/16 3:18:00 Author:Jessie | From:SeekIC

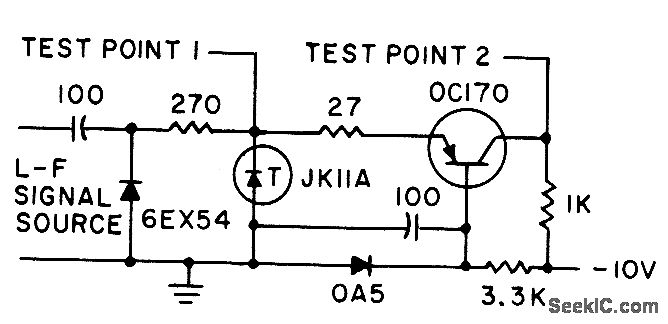

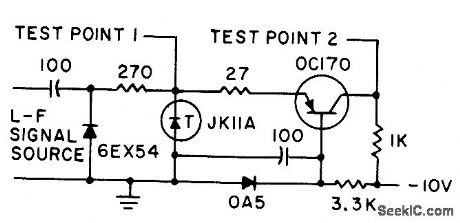

Negative-resistance characteristics of tunnel diode gives fast-rise-time rectangular pulses, in. dependently of signal frequency. Used here with common-base transistor amplifier-G. B. Smith, Tunnel Diode Generates Rectangular Pulses, Electronics, 33:48, p 124-125.
