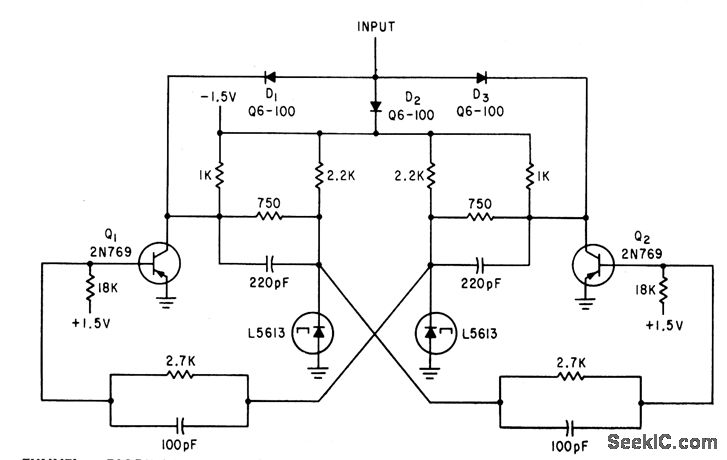

TUNNEL_DIODE_COUPLED__MICROENERGYFLIP_FLOP

Published:2009/7/14 20:56:00 Author:May | From:SeekIC

Fan-in and fan-out capabilities per unit dissipation are improved up to ten times over existing types of logic. Use of tunnel diodes allows low supply voltages, resulting in low circuit dissipation.-T. Maguire, Electro-Optical Developments Highlight NEREM, Electronics, 34:45, p 73-77.
