Published:2009/7/19 21:35:00 Author:Jessie | From:SeekIC

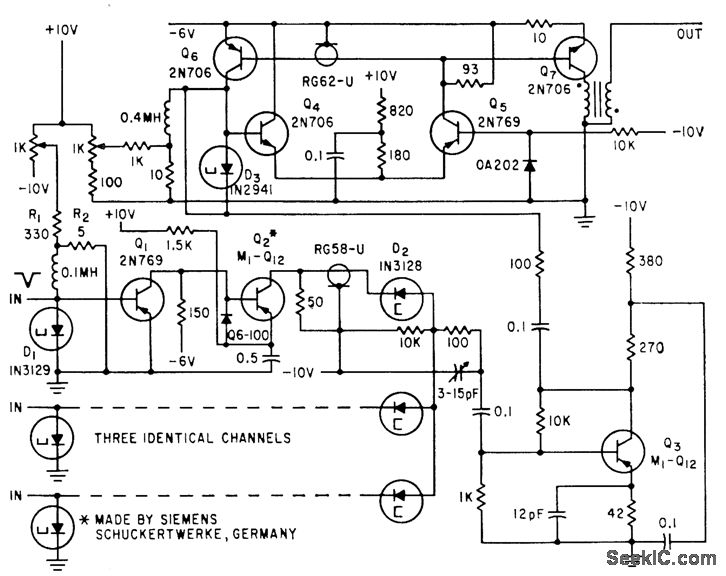

Determines coincidence of pulses from scintillation counter within nanosecond limits, for high-energy physics experiments. Circuit has limited timing jitter, good temperature stability, and is insensitive to transistor parameters.-C. Infante and F. Pandarese, Tunnel Diodes Stabilize Coincidence Circuits, Electronics, 34:46, p 133-135.
