TTL_driver

Published:2009/7/24 9:35:00 Author:Jessie | From:SeekIC

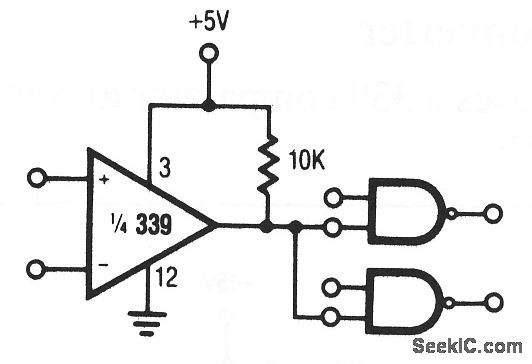

This circuit uses a 339 comparator as a TTL driver. Raytheon Linear Integrated Circuits, 1989, p. 5-30.
