TTL_compatible_solid_state_relay

Published:2009/7/24 11:43:00 Author:Jessie | From:SeekIC

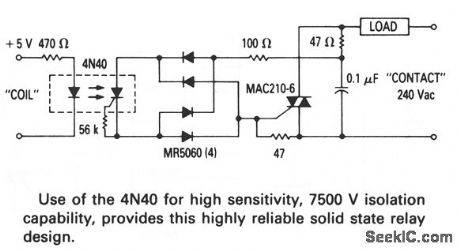

This circuit is compatible with 74, 74S, and 74H series TTL-logic inputs, and can handle 240 Vac loads up to 10 A. Motorola Thyristor Device Data, 1989, p. 6-20.
