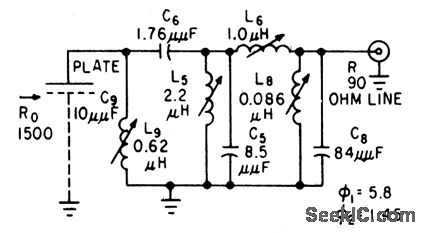

TRIPLE_TUNED_90_OHM_OUTPUT

Published:2009/7/14 4:05:00 Author:May | From:SeekIC

Used to provide bandpass between 55 and 65.5 Mc for signal from 10-mmfd plate capacitance.-R. B. Hirsch, How to Design Band-pass Triples, Electronics, 32:34, p 41-44. 800-cps.
