TRIGGERED_MVBR

Published:2009/7/1 20:08:00 Author:May | From:SeekIC

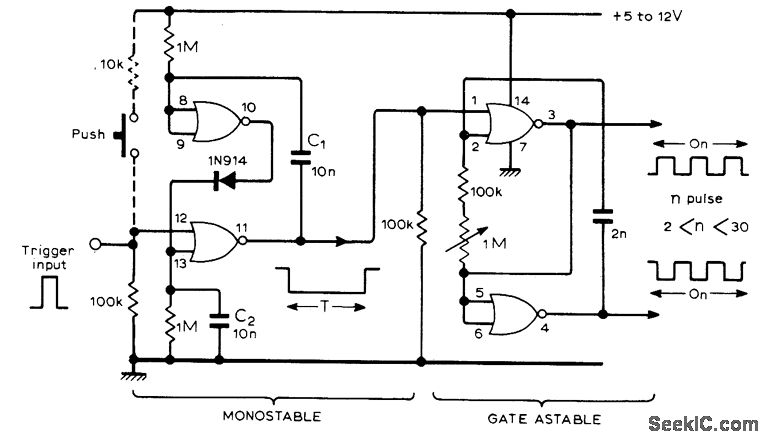

Each trigger input produces fixed number of pulses, between 2 and 30 depending on setting of 1-megohm frequency control. Monostable feeds gated astable, both realized with single CD4001 IC. Use dashed circuit with pushbutton for manual operation in place of trigger pulse.-K, Padmanabhan, N-Stable Multivibrator, Wireless World, April 1977, p 61.
