TRANSISTOR_SERIES_SWITCH

Published:2009/7/16 1:37:00 Author:Jessie | From:SeekIC

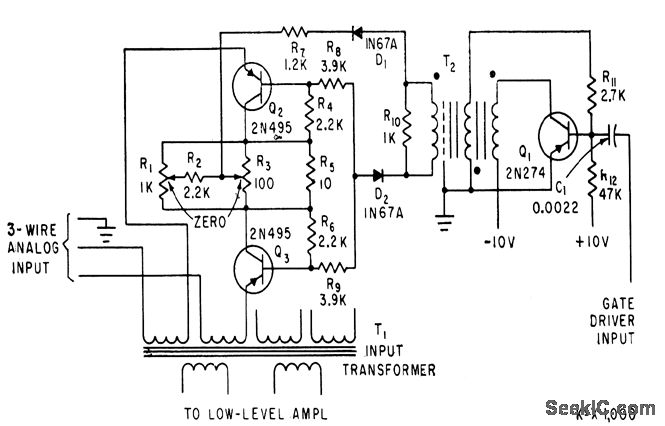

Two transistors back-lo-back in inverted connection serve as and gate between analog input from instrumentation transducer and input transformer of multiplexer. Gate driver receives key pulse from timing matrix.-C. E. Griffin, J. P. Knight, and J. H. Searcy, Low. Level Multiplexing for Digital Instrumentation, Electronics, 33:41, p 64-66.
