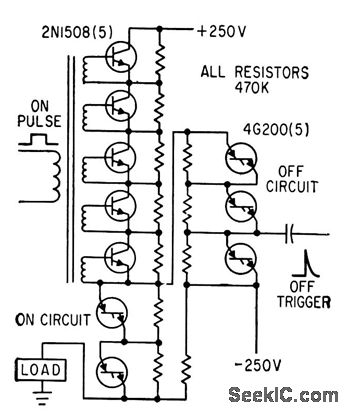

TRANSISTOR_DIODE_PULSE_MODULATOR

Published:2009/7/20 23:58:00 Author:Jessie | From:SeekIC

Four-layer diodes used in series give rise times faster than turn-on limes of transistors, for pulse modulation of traveling-wave tubes and other devices al repetition rates up to 100 kc, with 5-microsec pulses and 3-mkrosec pulse spacings.-E. H. Heckman, Three New Approaches to Pulse Modulation, Electronics, 36:18, p 62-64.
