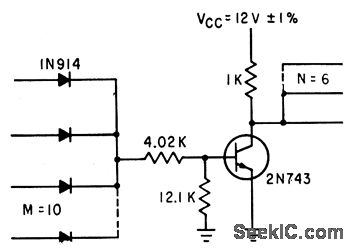

TRANSISTOR_DIODE_AfOR_GATE

Published:2009/7/16 3:51:00 Author:Jessie | From:SeekIC

Low leakage and low storage time of silicon epitaxial transistor allow omission of base turn-off sup ply while giving medium-speed operation over wide temperature rallge, up to 2 Mc for two cascaded logic stages.-D. Hall, Using Epitaxial Transistors in Switching and R-F Circuits, Electronics, 34:13, p 52-53.
