TRANSISTORS_FOR_AF_TUBES

Published:2009/7/14 3:19:00 Author:May | From:SeekIC

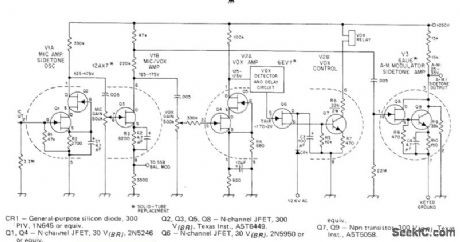

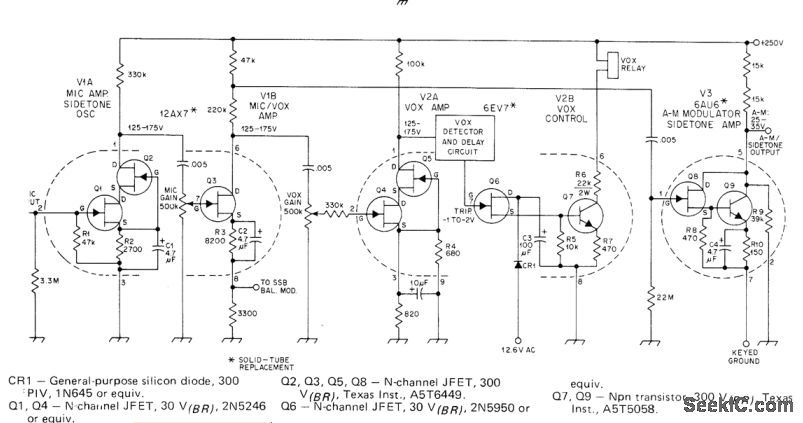

Article covers replacement of tubes in Drake T-4XB transmitter with solid-state equivalent circuits mounted in 7-pin and 9-pin miniature plugs，.Numbers identify original tube pins V1A and V2A use dual-cascode JFETs, while- operated transmitter relay control V2B and AM modulator V3 use high-voltage Darlington Q9 collector voltage is set at 150 V during standby by adjusting R9, Circuit includes first and second audio stages. Voltages indicate proper operating points. Source resistors may require adjustment.-H. J. Sartori, Solid-Tubes-a New Life for Old Designs, QST, April 1977, p 45-50.
