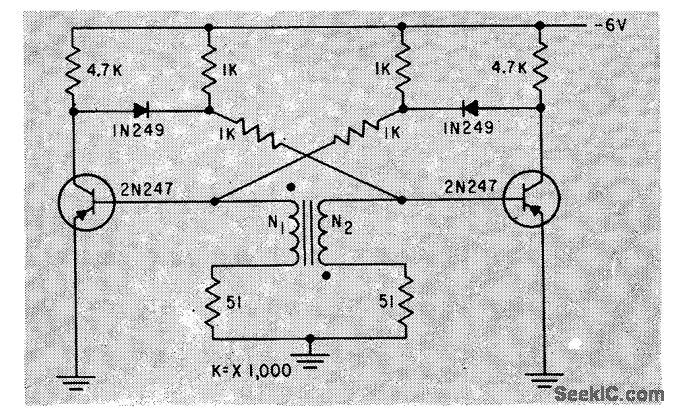

TRANSFORMER_CONTROLLED__MVBR

Published:2009/7/15 5:06:00 Author:Jessie | From:SeekIC

Gives sharper trailing edges und tighter control over ratio of on times of the two sides, as compared to choke control for same free-running mvbr. -W. M. Carey, Using Inductive Control in Computer Circuits, Electronics, 32:38, p 31-33.
