TIMING_SIGNAL_PLAYBACK

Published:2009/7/20 1:56:00 Author:Jessie | From:SeekIC

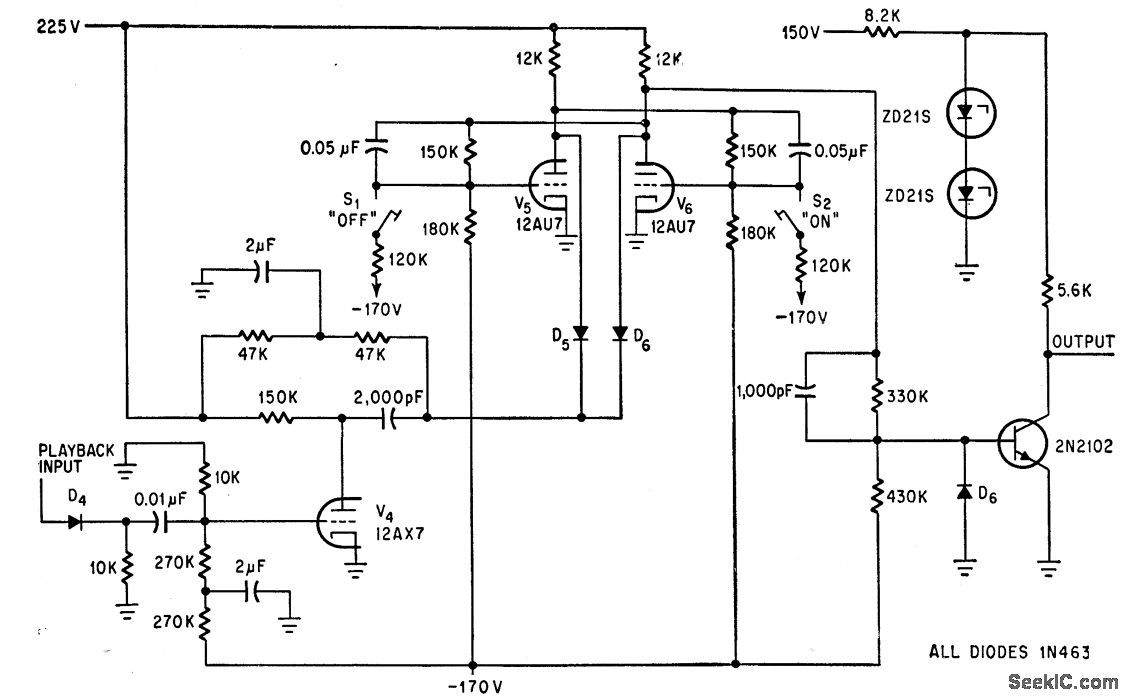

Timing signals, recorded as 50-v negative pulses, each corresponding to an edge of original interval-timing pulse in biomedical experiments, are converted to original rectangular pulse by pulse amplifier and bistable circuit. Negative pulse change state of bistable, to reproduce original pulse at output.-G. Silverman, Modified Tape Recorder Stores Timing Signals, Electronics, 39:13, p 75-76.
