TIME_TO_VOLTAGE

Published:2009/7/2 3:15:00 Author:May | From:SeekIC

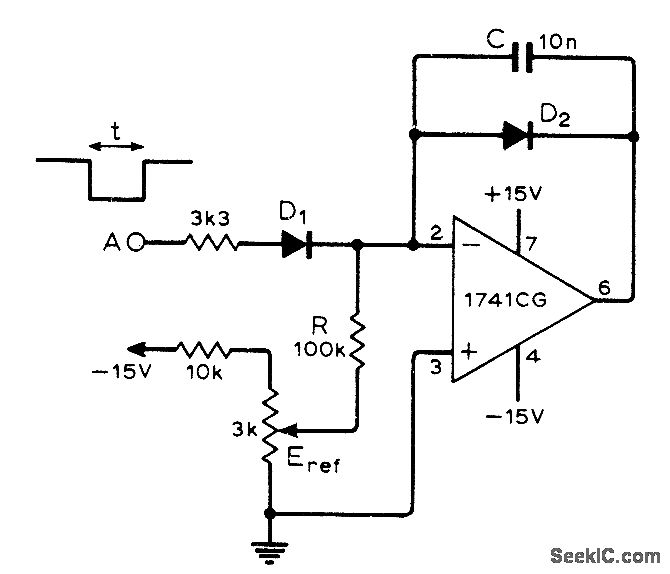

Time period of negative gating signal determines amplitude of linear output ramp generated by integrator opamp. Amplitude of ramp, proportional to input time, is observed on calibrated screen of oscilloscope.—G. B. Clayton, Experiments with Operational Amplifiers, Wireless World, Sept.1973, p 447-148
