TILT SWITCH Circuit

Published:2013/3/5 20:53:00 Author:Ecco | Keyword: TILT SWITCH | From:SeekIC

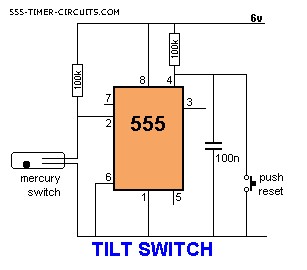

The output is LOW at start-up due to the capacitor on pin 4. When the mercury switch closes, the output goes HIGH and remains HIGH until the reset button is pressed. This circuit is called a LATCH.
