TICK_TACK_TOE_LOGIC

Published:2009/7/16 1:37:00 Author:Jessie | From:SeekIC

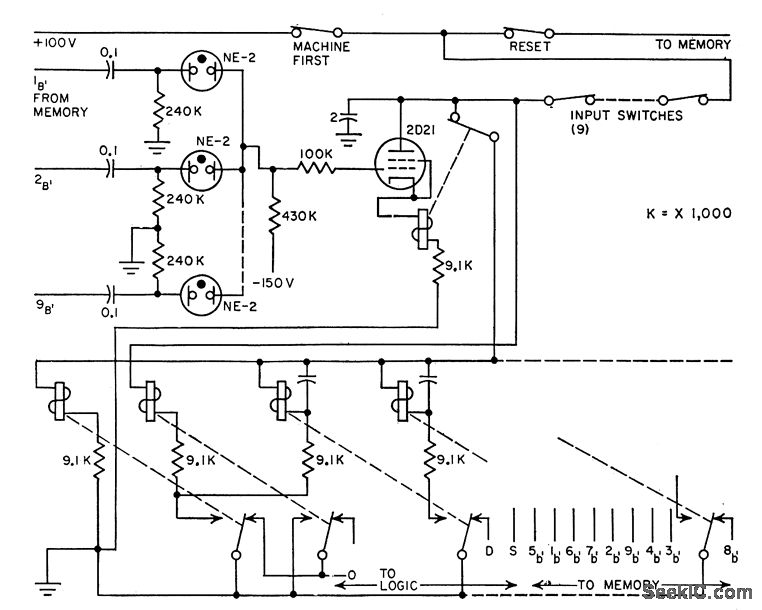

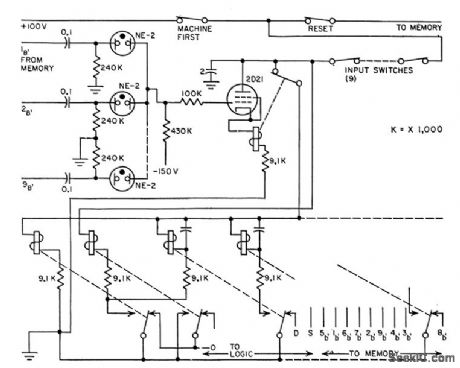

Neon lamps serve as diode gates and indicate positions and moves on game board. Thyratron-relay com bination serves as memory, while relays referee sequence to prevent two successive moves by either player.-C. E. Hendrix and R. B. Purcell, Neon Lamp Logic Gates Play Tick-Tack-Toe, Electronics, 31:25, p 68-69.
