THREE_PHASE_PULSE_GENERATOR

Published:2009/7/15 3:03:00 Author:Jessie | From:SeekIC

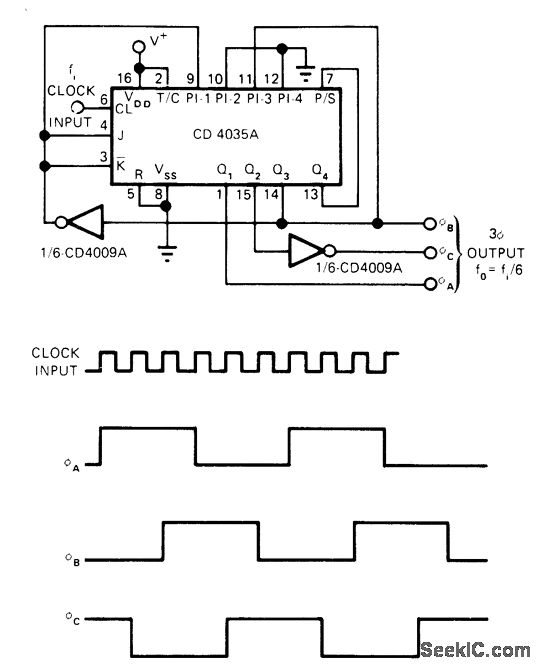

Requires only CMOS 4-bit shift register and two CMOS inverters. Register is connected to operate as divide-by-6 Johnson counter giving glitch-free outputs. Circuit is driven by square-wave clock signal having frequency 6 times that of desired output frequency.－C. Rutschow, Simple CMOS Circuit Generates 3-Phase Signals, EDN Magazine, June 20, 1976, p 128.
