THREE_DIODES_PROVIDE_8_STATES

Published:2009/7/14 2:57:00 Author:May | From:SeekIC

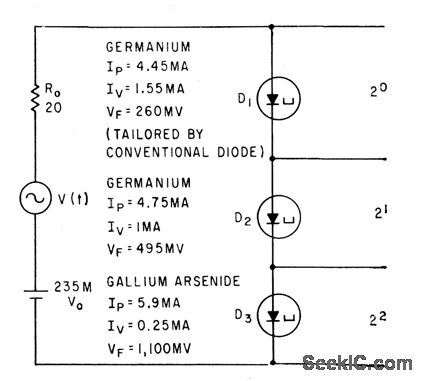

Three different tunnel diodes, each switching at a different input voltage level, act together to convert analog input voltage to digital form.-B. Rabinovici and J. Klapper, Designing Tunnel-Diode Circuits Using Composite Char-acteristics, Electronics, 35:7,p 46-48.
