THIN_FlLM_CURRENT_DRIVER

Published:2009/7/12 21:20:00 Author:May | From:SeekIC

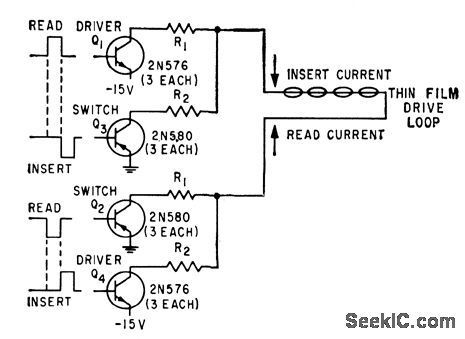

Three 2N576 driver transistors in parallel, each rated 400 ma, deliver 1-amp pulses with 0.15 microsec rise time. Three 2N580 pnp transistors in pamllel serve as current switches.-E. E. Bittmann, Using Thin Films in High-Speed Memories, Electronics,32:23,p55-57.
