THERMISTOR_COMPENSATED_ONE_SHOT

Published:2009/7/16 11:58:00 Author:Jessie | From:SeekIC

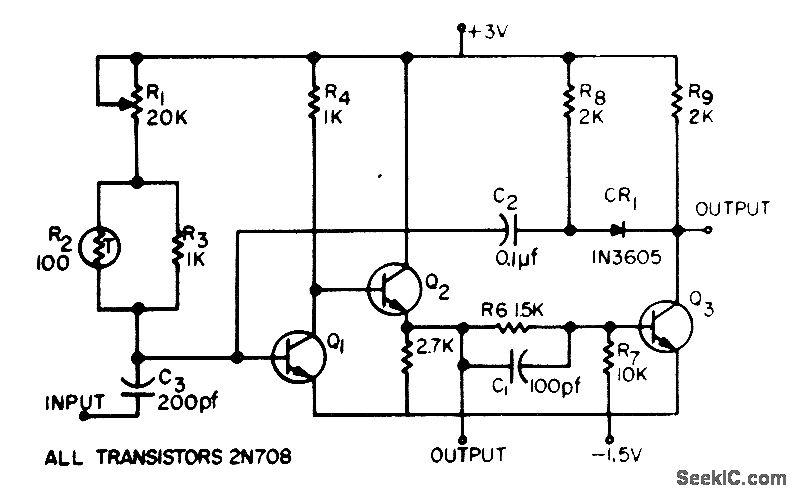

Negative-temperature-coefficient thermistor in pulse width determining network keeps pulse width of mvbr constant within 0.6% over range of 25℃. Basic period with values shown is 357 microsec, increasing to 359 microsec at temperature extremes.-B. Hedin, Temperature-Compensated One-Shot, EEE, 12:5, p 75.
