TEN_BAND_OCTAVE_EQUALIZER

Published:2009/7/8 3:16:00 Author:May | From:SeekIC

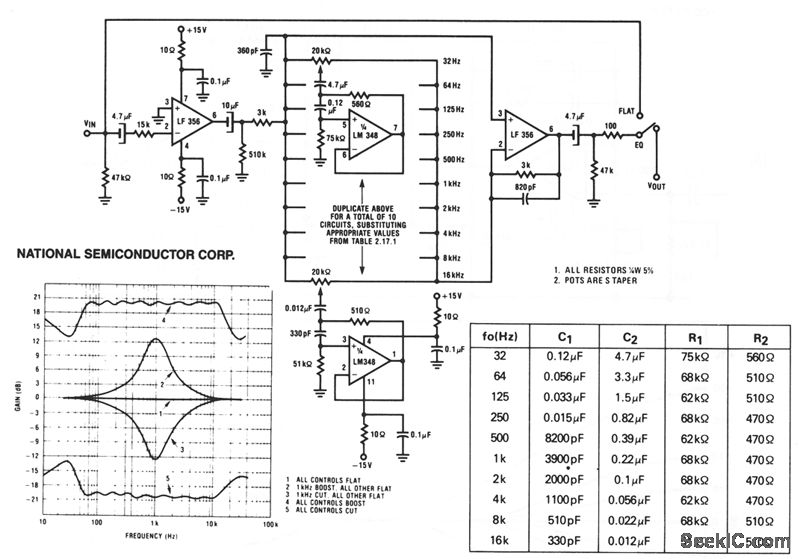

A series of active rf filters using National LM348IC comprises a ten-band graphic equalizer. C1, C2, R1, and R2 should be at least 10% with 5% preferred tolerances.
