TEA6415C Matrix Video Switch Integrated Circuit

Published:2011/7/19 10:58:00 Author:Michel | Keyword: Video, Switch Integrated Circuit | From:SeekIC

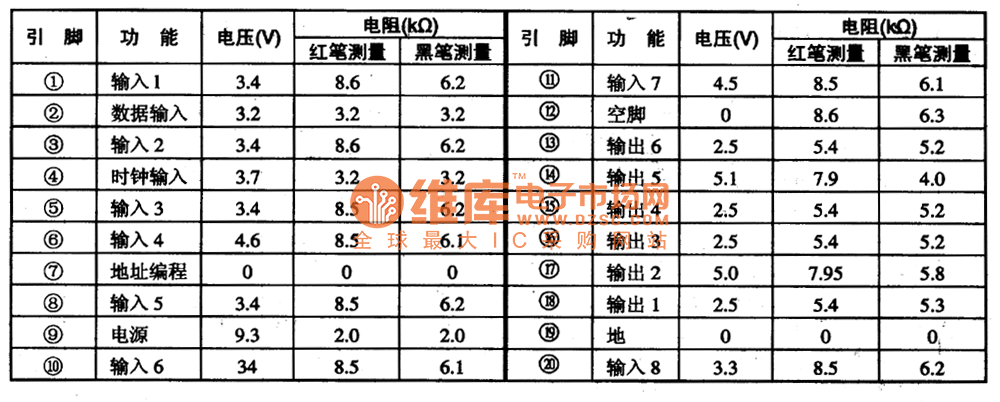

TEA6415C is matrix video switch integrated circuit produced by Thomson Company of France which is widely used in the DLP projection TV, such as ChangHong 5lPT28A etc. First,Functions Features The video switch circuit of TEA6415C integrated circuithas eight input and six the output ends. The switch function of intergrated block is controlled by I (2) C bus.And the block diagram is shown as picture 1-1. Second,Pins Functions and Data TEA6415C IC adopts 20 feet DIP package and its pins functions and data are shown as table 1-2.
