TEA2164 switching power thick film IC diagram

Published:2011/8/15 21:34:00 Author:Ecco | Keyword: switching power , thick film IC | From:SeekIC

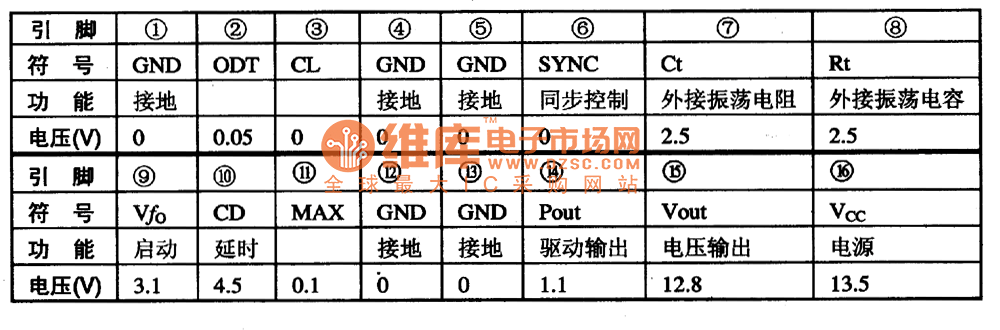

TEA2164 is the switching power thick film integrated circuit produced by Thomson, and it is widely used in Toshiba XH series (such as 2500XH, 2506XH, 2806XH), the West Lake series (such as C2918) of color television. 1. Features and functionsTEA2164 integrated circuit contains the oscillator circuit, starting circuit, driving pulse output circuit, delay circuit, synchronous control circuit, and other auxiliary functions circuit. 2. pin functions and data TEA2164 IC uses 16-pin double row package, and the pin function and data are listed in Table 1-1.
