TEA1061 calling integrated circuit diagram

Published:2011/5/6 4:32:00 Author:Ecco | Keyword: calling, integrated circuit | From:SeekIC

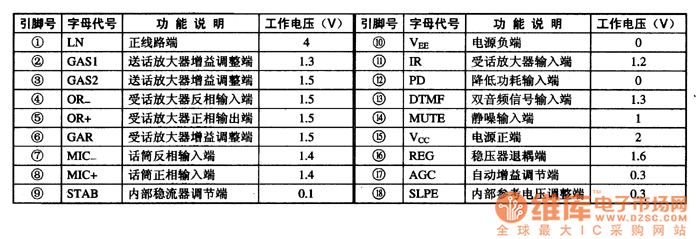

TEA1061 series of calling integrated circuits are widely used in telephone circuits such as cordless phones and corded phones. 1. Pin functions and dataTEA1061 integrated circuit is packaged with 18-pin in dual lines, the pin functions and data are listed in Table 1. Table 1 shows TEA1061 integrated circuit pin functions and data 2. The typical application circuit The typical application circuit composed of TEAl061 integrated circuit is shown in Figure 1. Figure 1 shows the typical application circuit of TEA1061 integrated circuit.
