TDA9373 Multi-functional super monolithic IC diagram

Published:2011/6/23 2:51:00 Author:Ecco | Keyword: Multi-functional , super , monolithic, IC | From:SeekIC

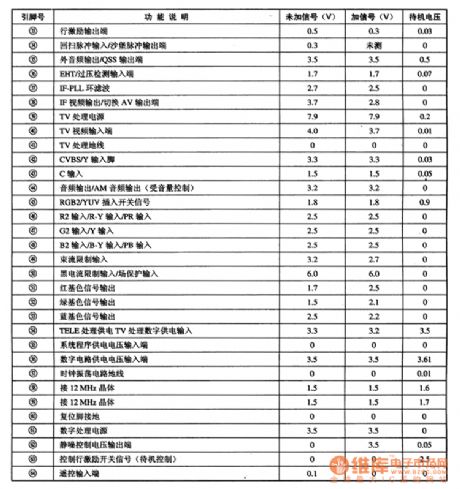

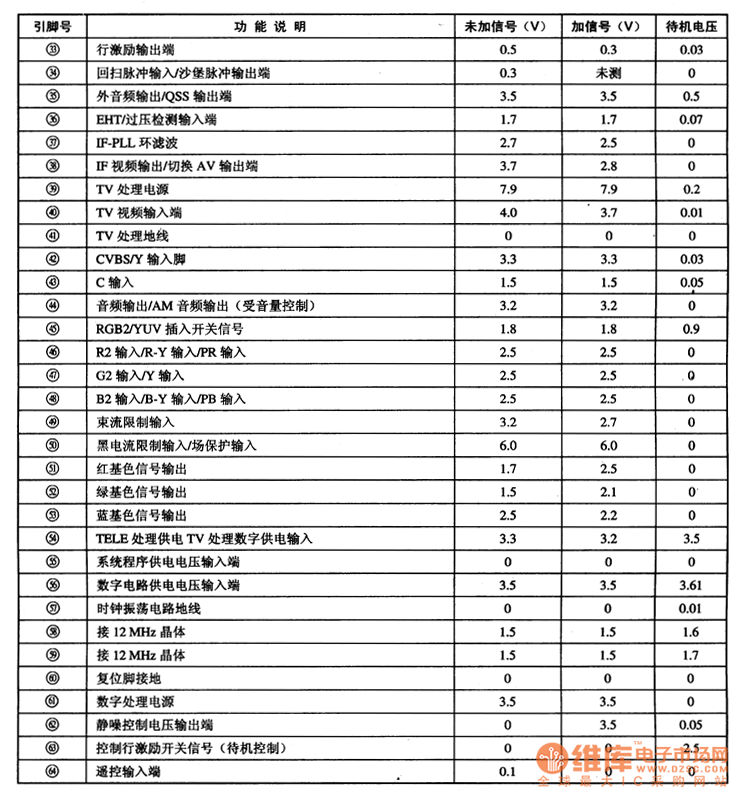

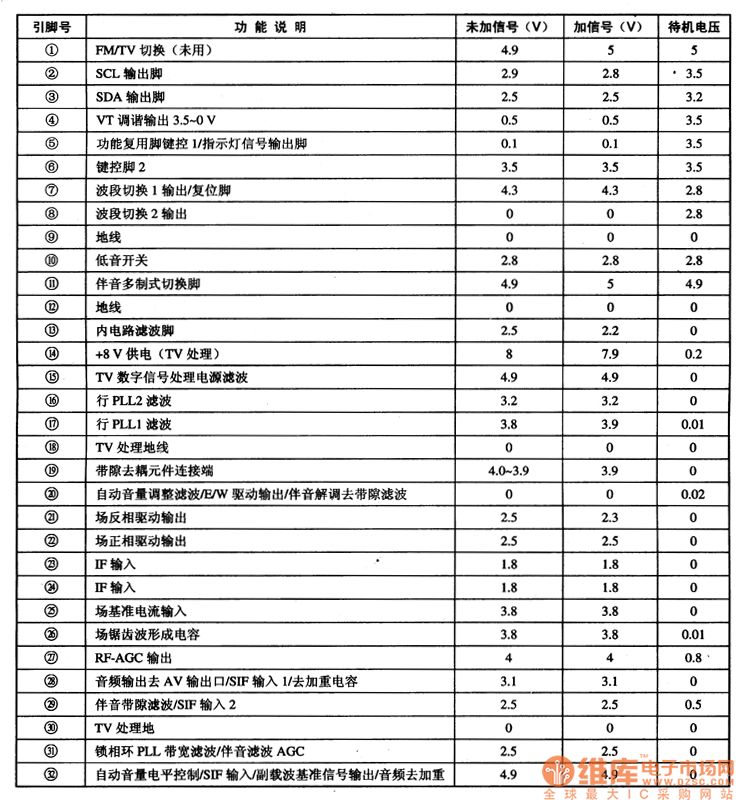

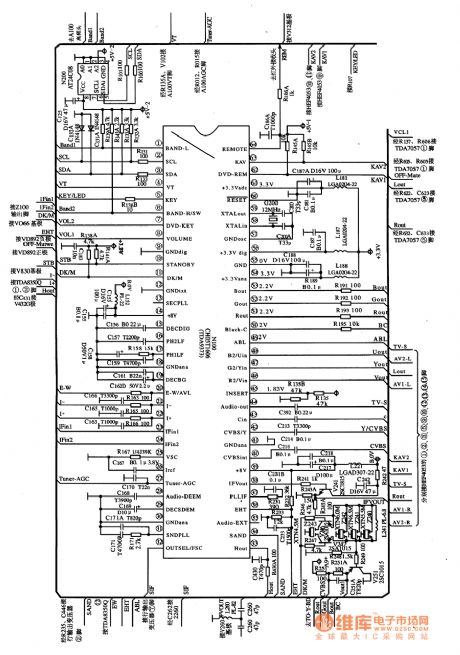

TDA9373 is a multi-functional super monolithic integrated circuit produced by Philips, it is widely used in domestic and imported large screen color television sets, such as Changhong, TCL, Konka, Hisense and so on. 1. Features of functionTDA9373 integrated circuit contains micro-control processor, TV signal processing circuit, the character display control circuit, and horizontal and vertical geometry correction circuit and some other subsidiaries. 2. Pin functions and data TDA9373 IC uses 64-pin double rows package, the pin function and the data are shown in Table 1. Table 1 shows TDA9373 integrated circuit pin functions and data. 3. Typical application circuit The TV signal processing and control typical application circuit composed of TDA9373 Integrated Circuit is shown in Figure 1, which is the applicating way of CH-16 five-way Changhong color TV. Figure 1 shows TDA9373 IC typical application circuit.
