TDA3654 field scanning output integrated circuit

Published:2011/6/8 19:02:00 Author:Christina | Keyword: field scanning, output, integrated circuit | From:SeekIC

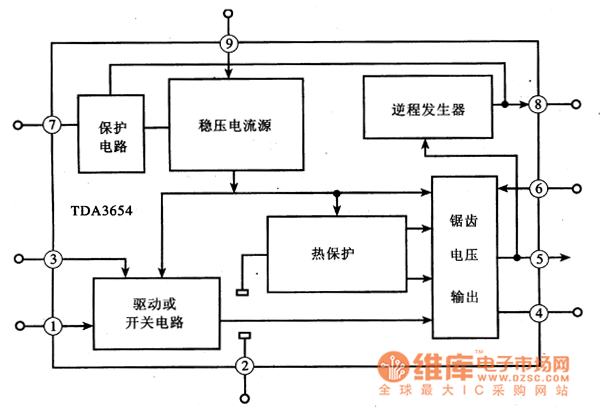

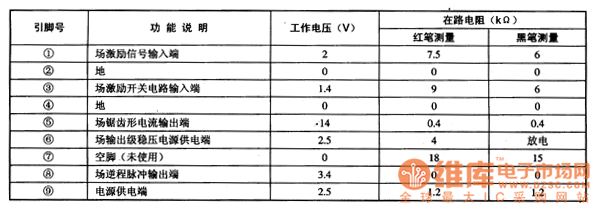

The TDA3654 is designed as one kind of field scanning output integrated circuit that is produced by the PHILIPS company, and it can be used in the domestic and imported color TVs. 1.Features The maximum output current of the TDA3654 integrated circuit is 2.2Ap-p, the maximum output power is 15W. The internal circuit block diagram is as shown in figure 1. This IC can be directly used as the substitute of the TDA3653B and TDA3653C. Figure 1 The internal circuit block diagram of the TDA3654 integrated circuit 2.Pin functions and data The TDA3654 integrated circuit is in the 9-pin single row package, the pin functions and data is as shown in the table 1. Table 1 The pin functions and data of the TDA3654 integrated circuit
