TD6301I(2)C bus control display drive IC diagram

Published:2011/9/13 2:28:00 Author:Rebekka | Keyword: bus control display drive | From:SeekIC

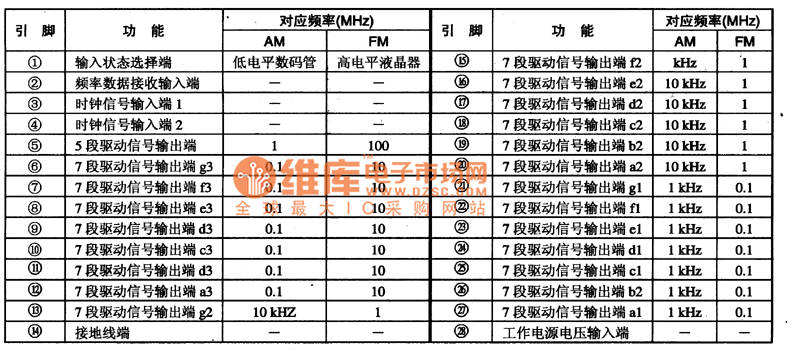

TD6301 is an I (2) C bus control display drive integrated circuit. It is widely used in low-voltage high-grade players and other audio equipment, car audio. TD6301 IC contains 3 groups of 7-segment display drive circuits and the input state selection circuit. The IC uses 28-pin plastic dual in-line structure, the IC 5 pin functions and data arelisted in Table 2. The pin functions and data of TD630lAP IC are shown in table.
