TC9316F-003--the system control microcomputer integrated circuit

Published:2011/6/6 22:30:00 Author:qqtang | Keyword: system control, integrated circuit | From:SeekIC

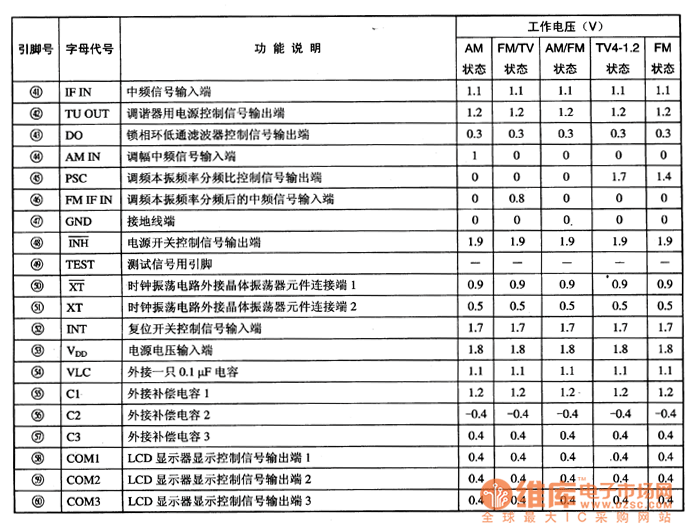

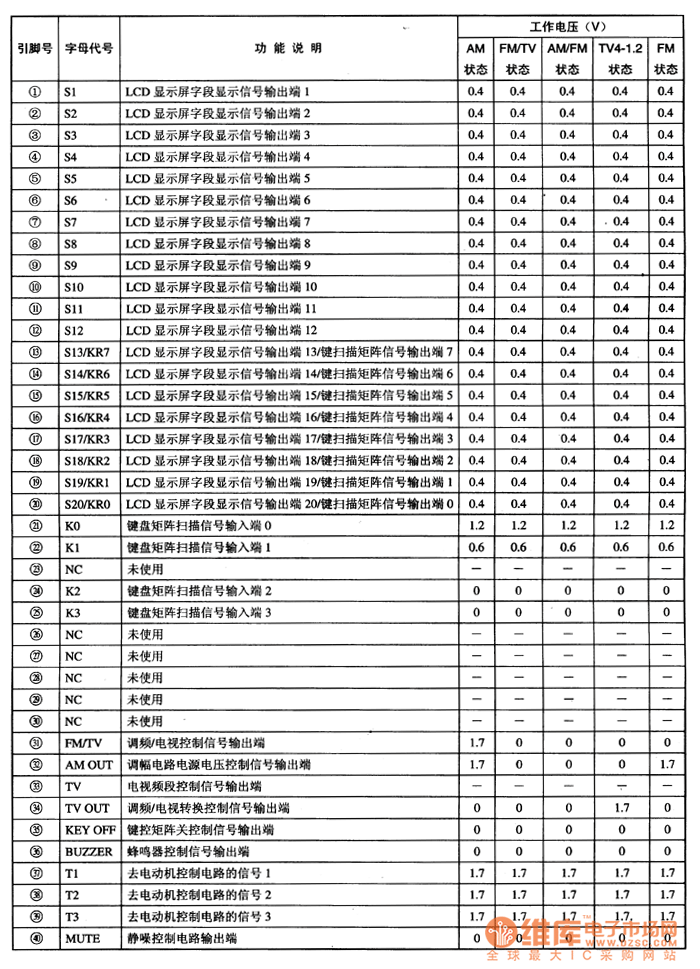

TC9316F-003 is a system control microcomputer integrated circuit produced by Toshiba, which is usually used in Aiwa, Sanyo and local walkmen and repeaters.1.function featuresTC9316F-003 contains the key matrix encoding circuit, clock oscillator circuit, modulation control circuit, LCD screen decoding drive circuit.2.pin functions and dataTC9316F-003 is in 60-pin square package, whose pin functions and data are listed Table 1.Table 1. pin functions and data of TC9316F-003
