TC89101P memory integrated circuit diagram

Published:2011/5/9 2:13:00 Author:Ecco | Keyword: memory, integrated circuit | From:SeekIC

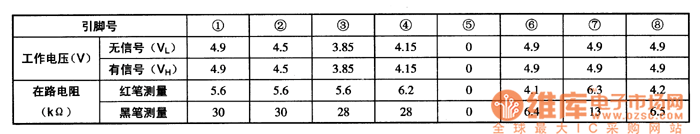

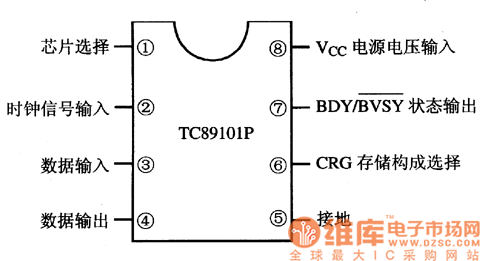

TC89101P is the memory integrated circuit produced by Toshiba, it is widely used in color television sets, air conditioning, audio and other system control circuit. 1. Features of functionsTC891O1P integrated circuit is mainly composed of memory matrix circuit, the selection circuit composed of CRG storage, the register circuit, data input / output interface circuit. 2. Pin functions and data TC89101P IC uses the package with 8 feet in the column, the pin functions are shown in Figure 1, the operating parameters are listed in Table 1.
